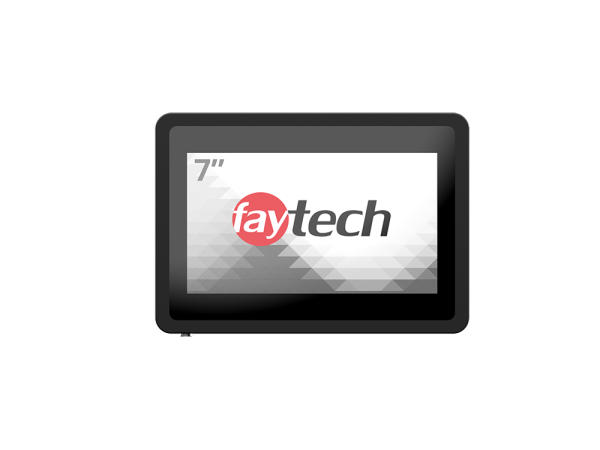

7" capacitive touch monitor FT07TMCAPOB
FT07TMCAPOB
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 1.1mm cover glass with 7H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicone seal
- Integrated audio speakers (2x2w)
- 2 year guarantee (24/7 operation)
3 - 5 werkdagen
De FT07TMCAPOB is een geavanceerd touchscreen display, speciaal ontworpen voor veeleisende toepassingen waar betrouwbaarheid en duurzaamheid essentieel zijn. Dit hoogwaardige product combineert innovatieve technologie met een robuust ontwerp en biedt een uitstekende gebruikerservaring.
Belangrijkste kenmerken:
- Anti-glare oppervlak: Dankzij chemische etsing minimaliseert het scherm reflecties, waardoor u altijd een helder zicht heeft, zelfs in fel verlichte omgevingen.
- 10-Finger Multi-Touch: De capacitive touch panel ondersteunt multitouch met 10 vingers, ideaal voor intuïtieve en nauwkeurige bediening.
- Duurzaam glas: Uitgerust met 1,1 mm dik glas en een 7H hardheid, biedt het scherm uitstekende weerstand tegen krassen en beschadigingen.
- Optische bonding: De touch panel is optisch gebonden aan het LCD-scherm, wat zorgt voor verbeterde helderheid en minder schittering.
- IP65-gecertificeerde voorzijde: De gepatenteerde siliconen afdichting biedt uitstekende bescherming tegen stof en spatwater, perfect voor industriële omgevingen.
- Geïntegreerde audio: Twee ingebouwde 2W-luidsprekers zorgen voor een rijke en heldere geluidsweergave.
- Betrouwbare garantie: Geniet van gemoedsrust met een garantie van 2 jaar, zelfs bij 24/7 gebruik.
De FT07TMCAPOB is de ideale keuze voor toepassingen in uitdagende omgevingen zoals industriële automatisering, gezondheidszorg, en commerciële displays. Met zijn robuuste eigenschappen en betrouwbare prestaties is dit display een investering in kwaliteit.
Bestel nu en ervaar de combinatie van innovatie en duurzaamheid!
Algemeen
- SKU
- 4010077700
- Productcode
- FT07TMCAPOB
- Levertijd
- 3 - 5 werkdagen
- Manufacturer
- faytech
- Art Grp
- MO
Product informatie
- Productnaam
- 7" capacitive touch monitor FT07TMCAPOB
- EAN nummer
- 6920734007103
- IP beschermklasse
- IP65 Front / IP40 Back
- Kleur
- Zwart
Included in the delivery
- Inclusief in the delivery
- Power Supply, VGA kabel, USB touch kabel , Audio kabel, Short Installation Manual
Display
- Display size
- 7" / 17.78 cm
- Beeldscherm ratio
- 16:9
- Resolutie
- 1024 x 600
- Active Area [mm]
- 154.21 x 85.92
- Helderheid (cd/m²)
- 500 cd/m₂
- Contrast Ratio
- 800:1
- LED life time [h]
- 20000
- Viewing Angle [°]
- 160 / 130
- Display interface
- LVDS
PC/Monitor system
- Monitor Controller
- Realtek® RTD2556T
- Monitor Firmware
- Standard
- VGA
- 1
- Audio In
- 1
- USB-B (touch)
- 1
- OSD Buttons
- Power On/Of, Decrease Brightness/Left/ Down, Increase Brightness/Right/Up, Menu/ Enter, Input Selection
- Adjustable Features
- Brightness, Contrast, Screen Setting, Color Temp, Color Effect, Language, Reset, Auto Adjust
Touch panel
- Touch Type
- Projected Capacitive 10-point Multi-touch
- Printing type touch panel
- Organic
- Cover Glass Surface Treatment
- AG
- IK Protection
- IK07
- Printing Color
- RAL9004 (Black)
- Touch controller
- EXC81W60
- Touch Interface
- USB
- Touch Resolution RX
- 96
- Touch Resolution TX
- 54
- Optical Bonding
- Clear Bond®
Environmental conditions
- operation temperature
- -10°C to 60°C
- Storage Temperature
- -20°C to 60°C
- Humidity Range (RH)
- 10% to 90%
Certifications
- CE certificatie
- yes
- FCC Certificatie
- yes
Chassis
- Case Design
- Rubber Frame Sealing
- Case size
- Small
- IP Protection
- IP65 Front / IP40 Back
- Case Color
- Silver
- Case Coating
- Powder Coating
- 201.0 × 160.5 × 40.7
- 195.6 × 137.6 × 43.2
- Cut-out for clamp supports L × H [mm]
- N/A
- Max. wall thickness for clamp supports [mm]
- N/A
- Amount of clamps required
- N/A
- Mounting
- VESA 100 × 100
Accessories
- USB-Touch Cable
- YesYes
- Short instruction manual
- Yes
Power
- Power Indicator
- Green LED
- Voltage (V)
- 12V
- Power Consumption
- 7W
- Stand-By Consumption (W)
- <1W
Weight and Packaging
- Net weight
- ~1.70 kg est
- Gross Weight
- ~2.00 kg est. (incl. Cartonage)
- Packaging Material
- 100% recyclable cardboard and polyethylene (PE)
- Packaging Size L × W × H [mm]
- 355.0 × 280.0 × 80.0
overig
- Kijkhoek horizontaal / verticaal (°)
- 160/130 (°)
- Backlight / Backlight lifetime
- 20000 (hours)
- Touch type
- Capacitive multi-touch
- Voedingsspanning
- 100-240V ACDC active switching; 12V DC-Out
